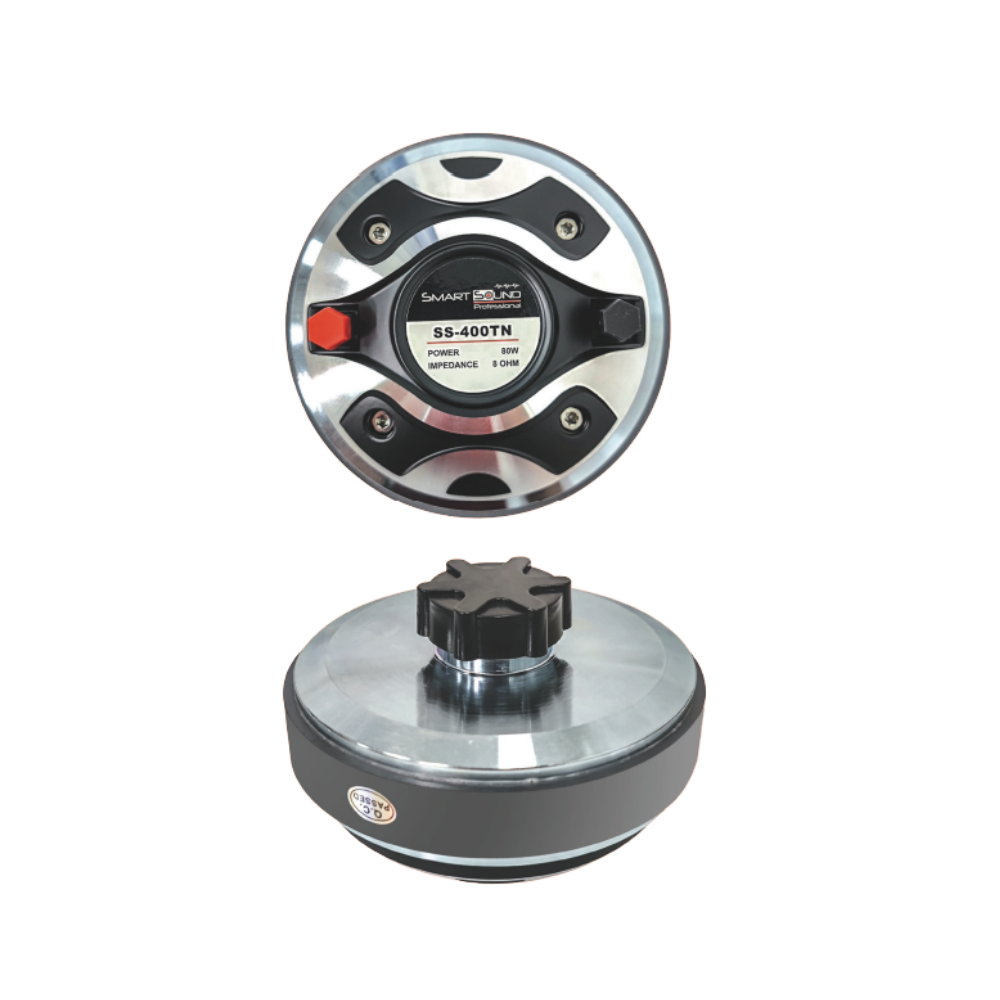

HF-SS400TN
Product Specification: - 1" Thr oat & 1.75" Voice Coil – Delivers pr ecise HF projection with robust , durable performance. - High Power Handling – 70W nominal / 140W continuous for demanding pro audio use. - Exceptional Sensitivity – 110 ±2 dB ( 1W/1M) for powerful, efficient output. - Wide Frequency Range – 1200 Hz to 20 kHz (-10 dB) for clear, detailed highs.

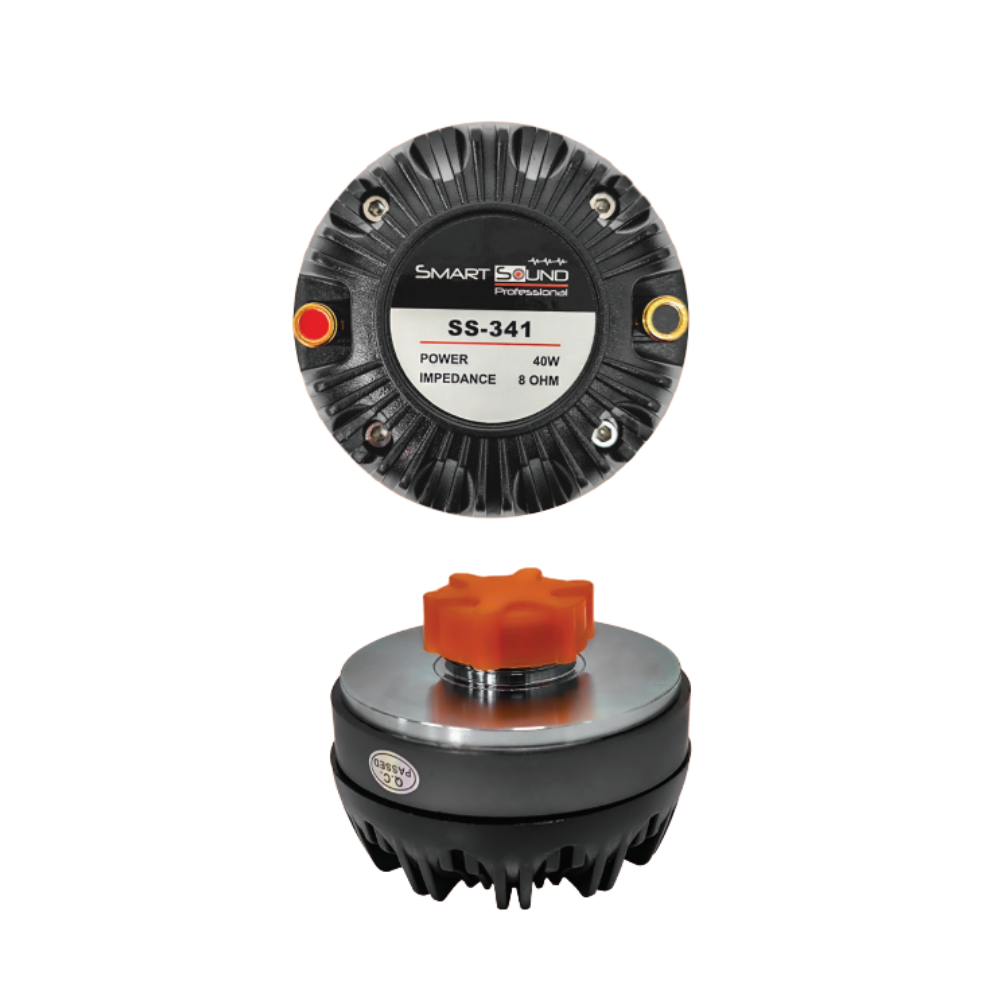

HF-SS 341
Product Specification: - 1" Throat & 1.35" CCAW Voice Coil – Delivers precise HF projection with lightweight, efficient performance. - Power Handling – 35W nominal / 70W continuous for demanding pro audio applications. - High Sensitivity – 107 ±2 dB (1W/1M) ensures loud, clear output with minimal power. - Wide Frequency Range – 1300 Hz to 20,000 Hz (-10 dB) for dynamic high-frequency clarity.
HF-520S ( COMPRESSION DRIVER )
- 1" Throat, 1.75" Aluminum Coil – Pure ribbon wire for high efficiency and durability. - Power & Impedance – 80W, 8Ω; bolt-on mount for secure installation. - High Sensitivity – 113 dB for powerful, clear output. - Freq. Range – 1.5 kHz–18 kHz for vibrant HF detail.

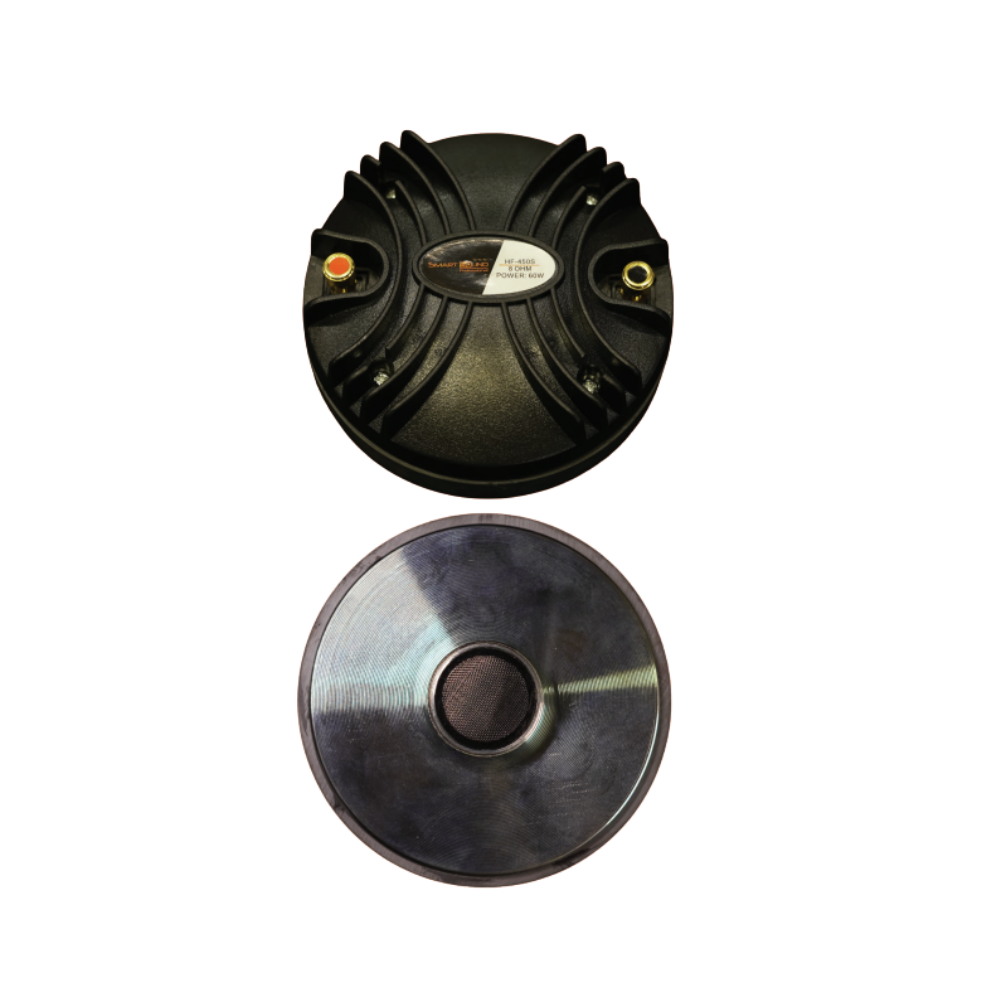

HF-450S ( COMPRESSION DRIVER )
- 1" Throat, 1.75" CCAW Coil –Lightweight, durable with Kapton former. - Power Handling – 60W nominal / 120W continuous. - 110 ±2 dB Sensitivity – Clear, powerful output. - Freq. Range – 1200 Hz–20 kHz for crisp highs.

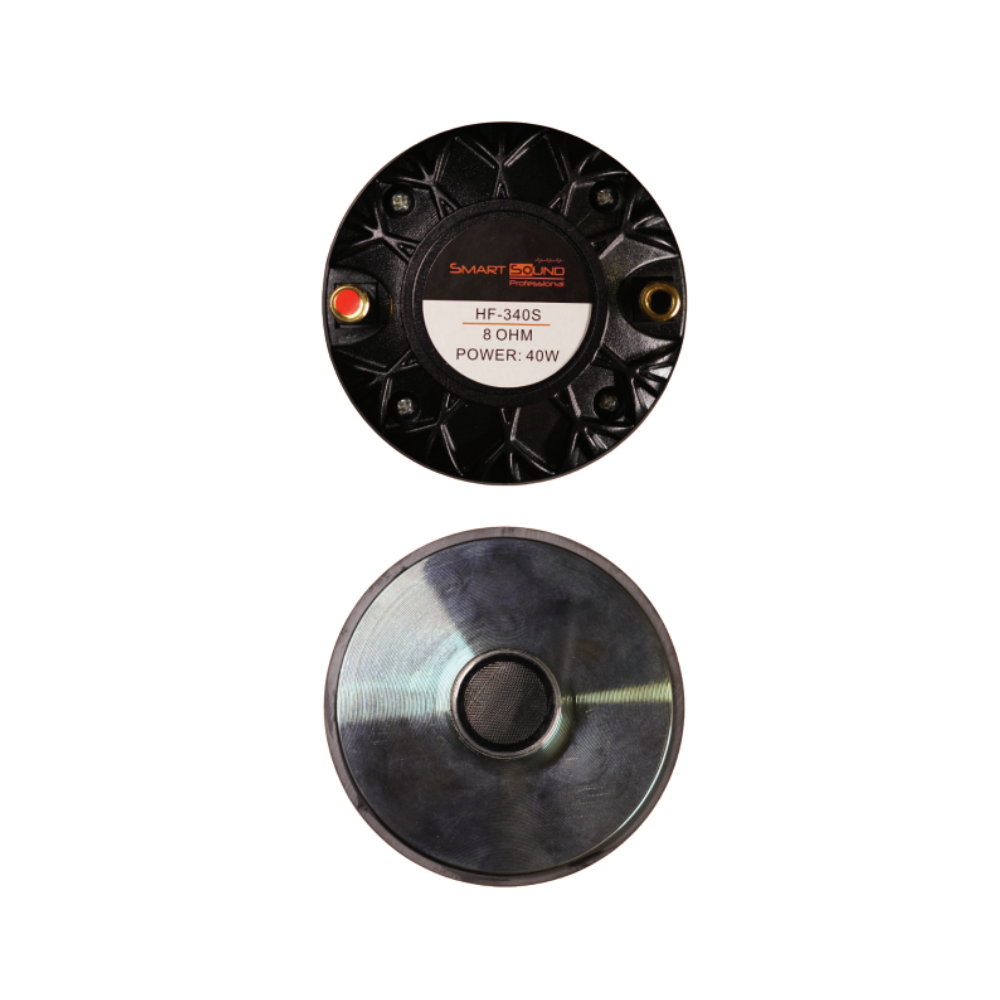

HF-340S
Product Specification: - 1" Throat & CCAW Voice Coil Durable design with Kapton former. - Power Handling – 40W nominal / 80W continuous. - Sensitivity – 108 ±2 dB, 1.2 kHz–20 kHz frequency range. - Titanium Diaphragm & Ferrite Magnet – Reliable, efficient HF performance.
