specification :

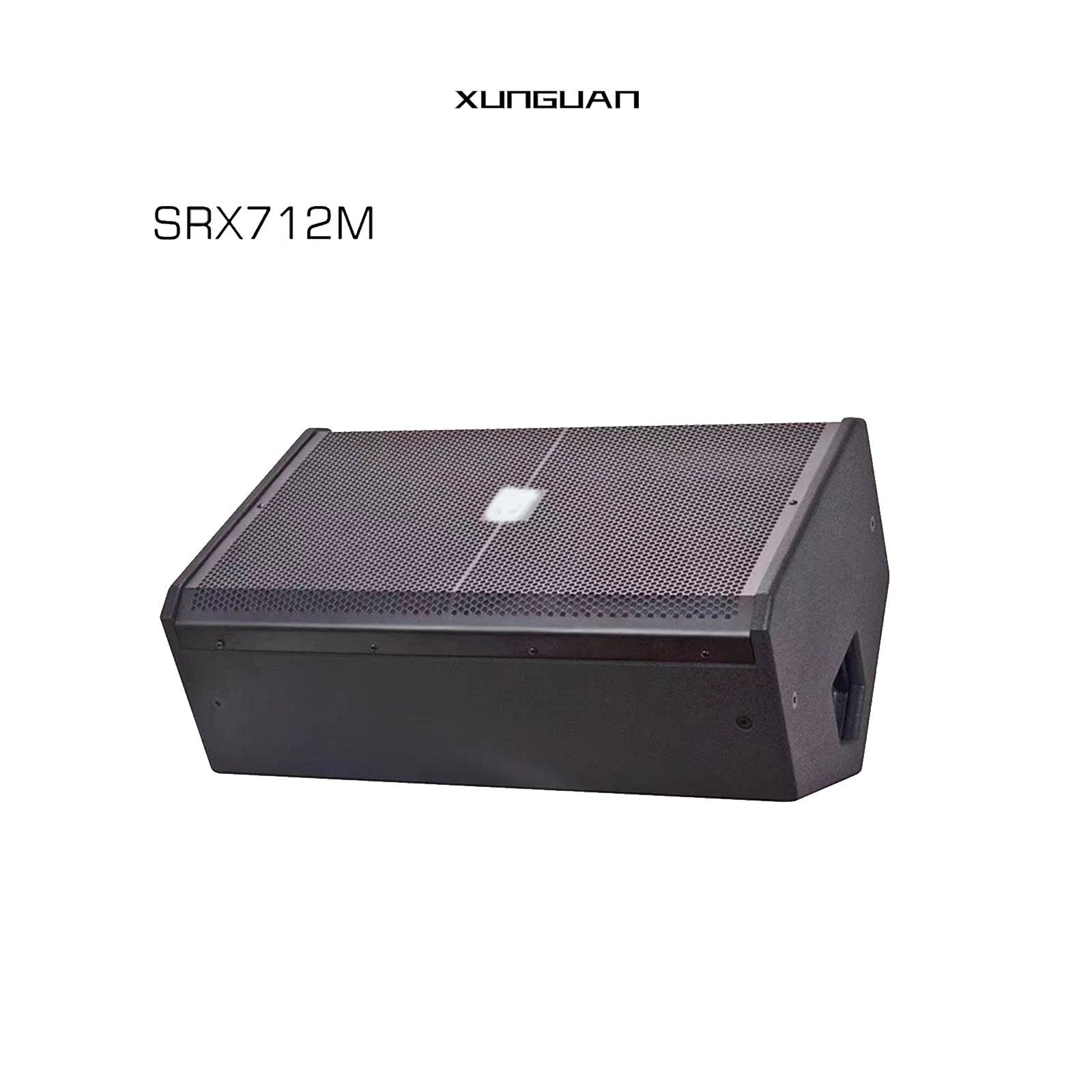

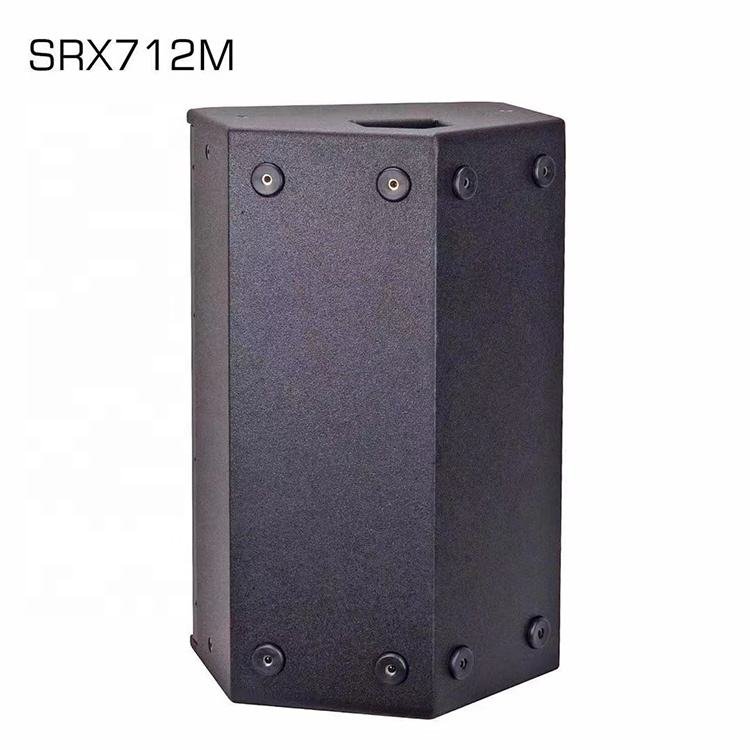

● Specifications: System Type: 12″, two-way, bass-reflex,
stage-monitor / utility
● Frequency Range (-10 dB): 70 Hz – 20 kHz
● Frequency Response (±3 dB): 83 Hz – 18 kHz
● Coverage Pattern: 50° x 90° nominal
● (Monitor position)
● Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.2 kHz
● Power Rating Passive: 400 W / 800 W / 1600 W (Continuous1 /
Program / Peak)
● Bi-amp LF: 400 W / 800 W / 1600 W
● Bi-amp HF: 75 W / 150 W / 300 W
● Maximum SPL2 : 131 dB SPL peak
● System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)
● LF Driver: 1 x 305 mm (12 in) Differential Drive woofer
● HF Driver: 1 x 75 mm (3 in) voice coil, ferrite compression driver
Nominal Impedance: Passive: 8 ohms
● Bi-amp LF: 8 ohms Bi-amp HF: 8 ohms
