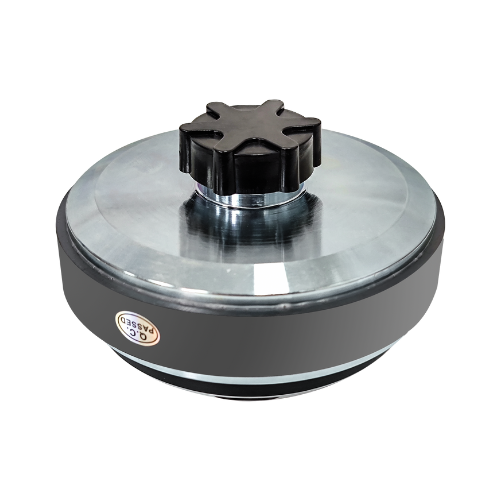

● Model: The ATI A450HD is a high-performance HF Compression driver
designed to deliver exceptional audio clarity and power.
● Throat Size: Featuring a 1-inch throat, it ensures focused and precise
sound projection.
● Nominal Impedance: With an 8-ohm nominal impedance, it is compatible
with a wide range of audio systems.
● Nominal Power Handling: It offers a nominal power handling capacity of 70
watts, making it ideal for professional audio applications.
● Continuous Power Handling: The driver can handle up to 140 watts of
continuous power, ensuring reliability and performance during extended
use.
● Sensitivity: With a sensitivity rating of 110 ± 2 dB, it provides powerful and
efficient sound output.
● Frequency Range: The frequency range spans from 1200 Hz to 20 kHz (-10
dB max), delivering rich and detailed high frequencies.
● Voice Coil Diameter: It is equipped with a 1.75-inch voice coil, ensuring
durability and robust performance.
